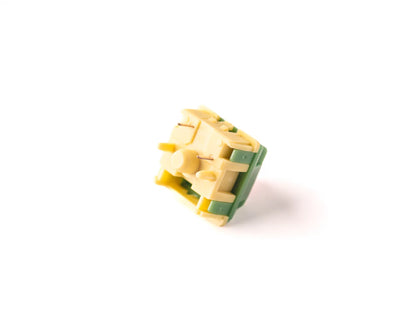

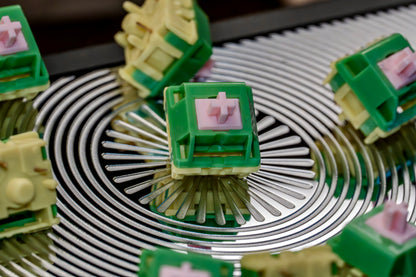

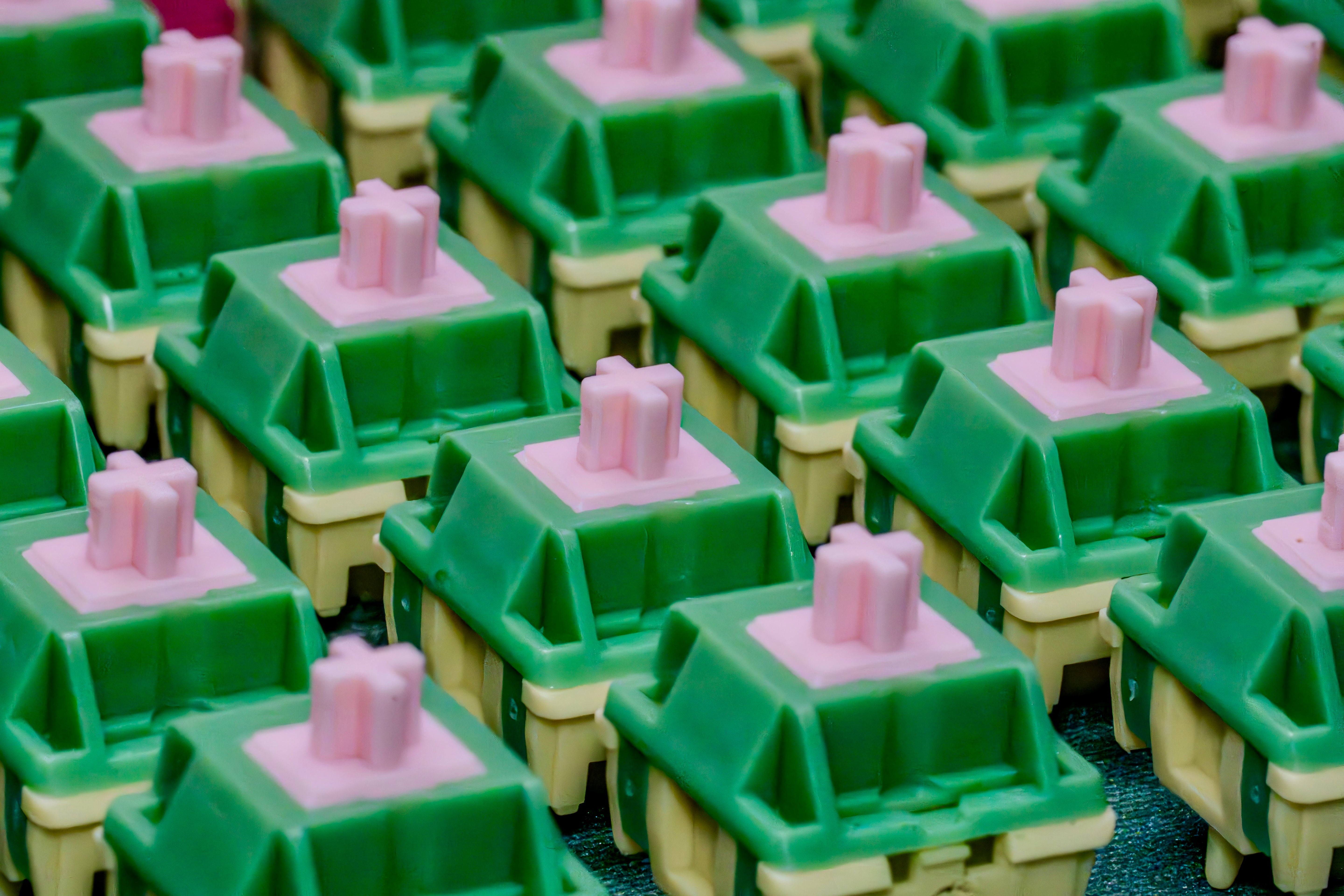

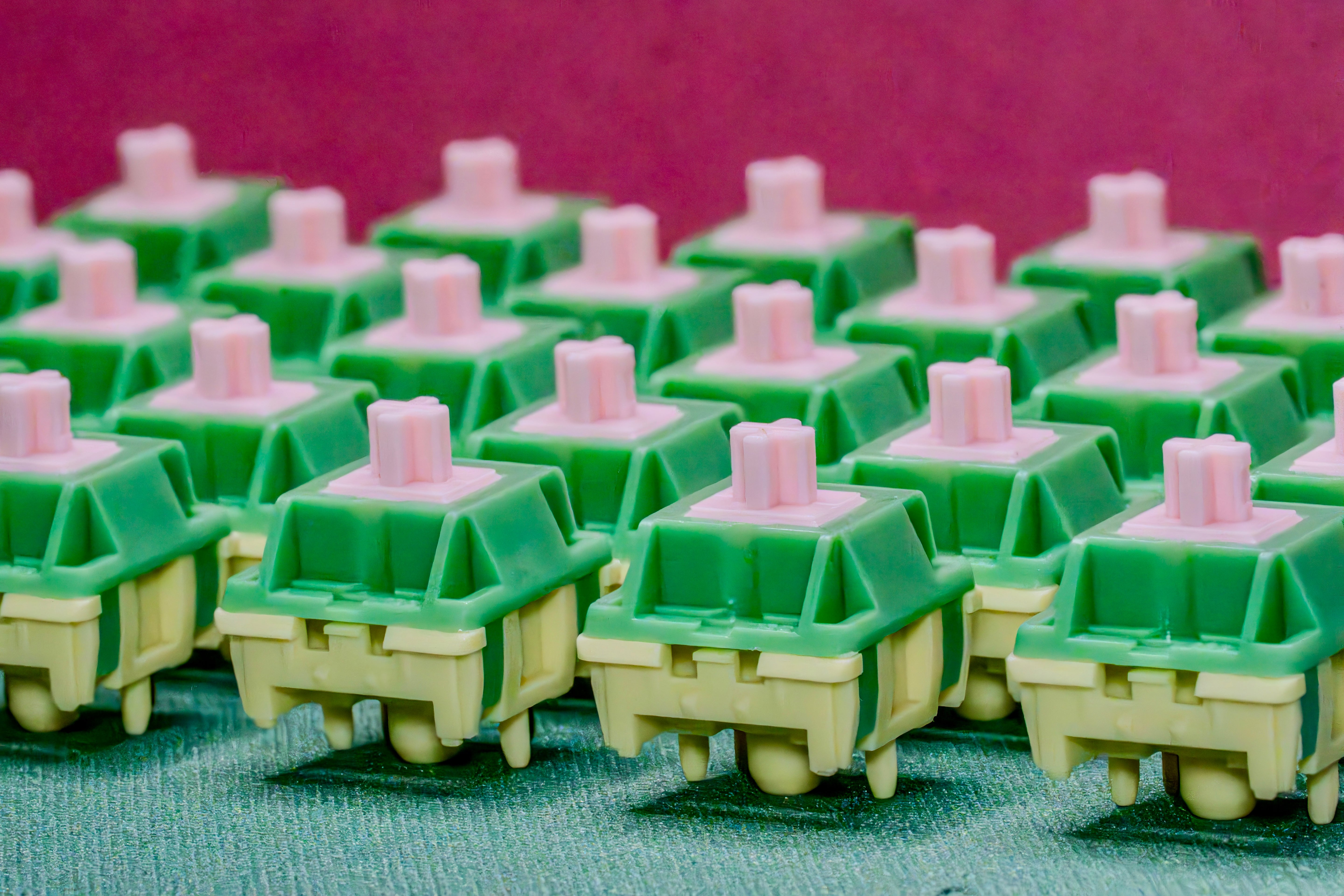

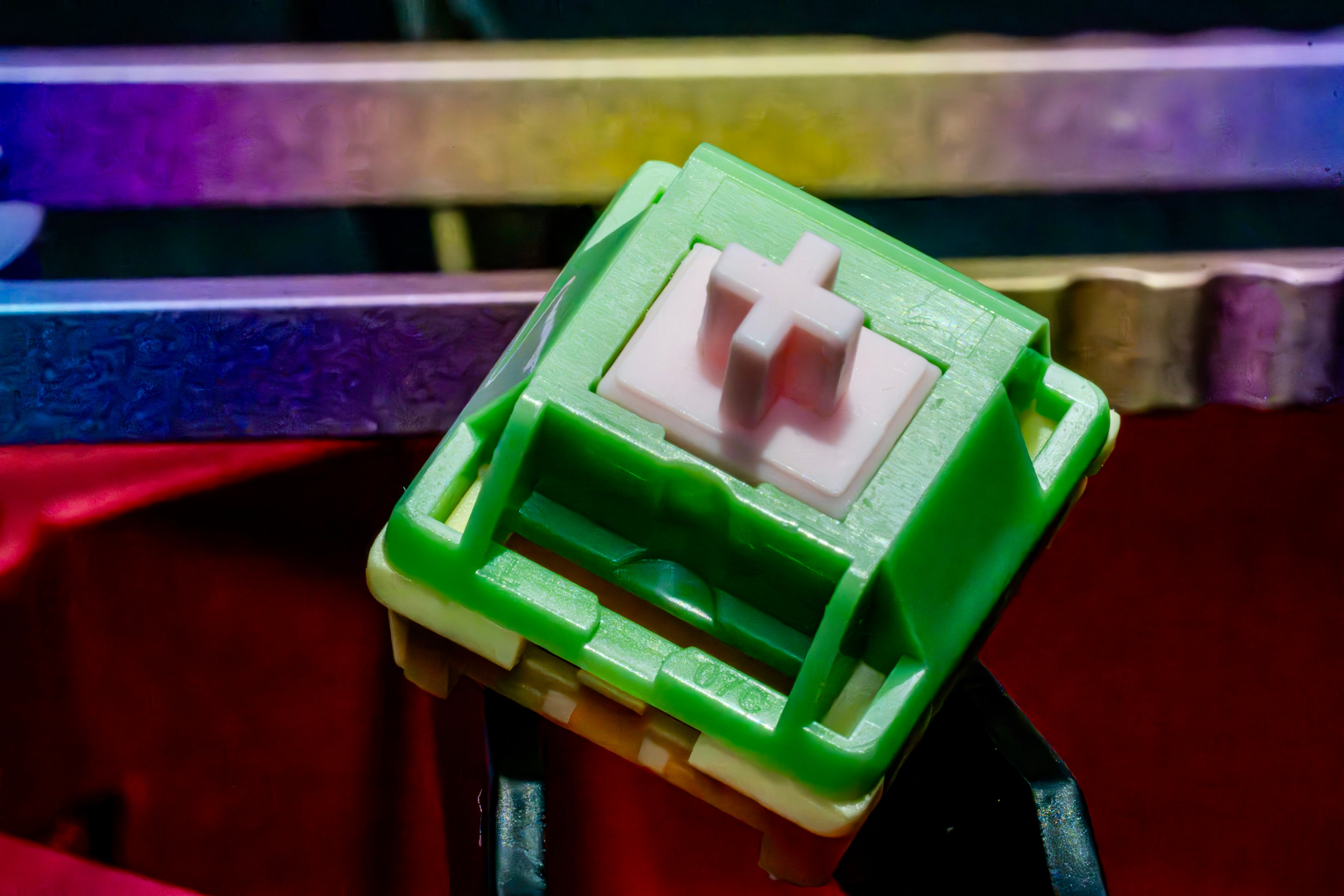

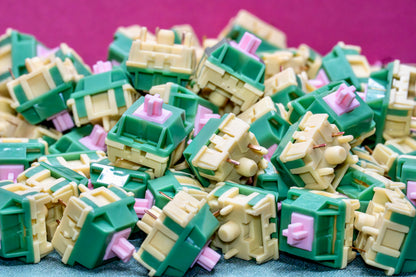

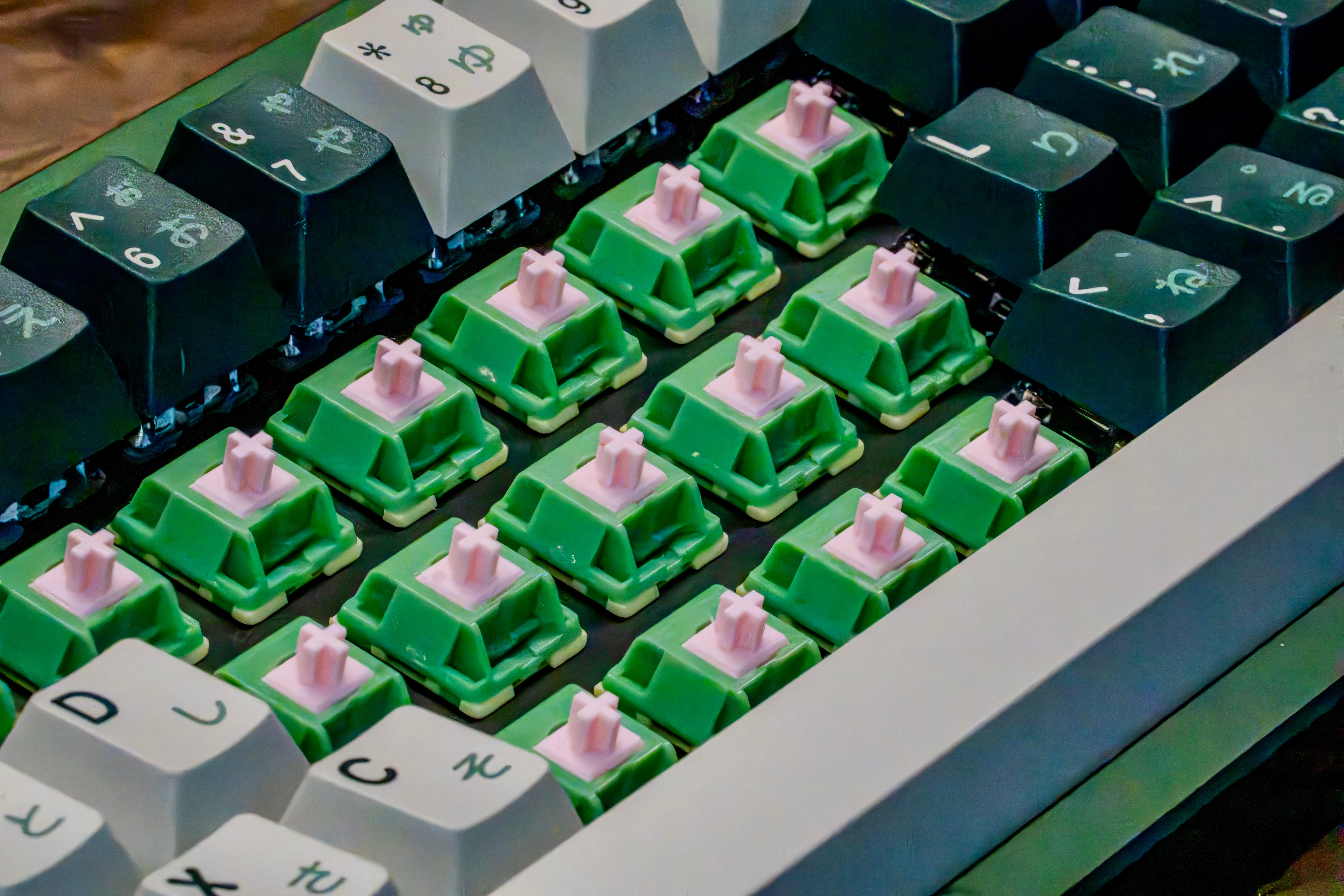

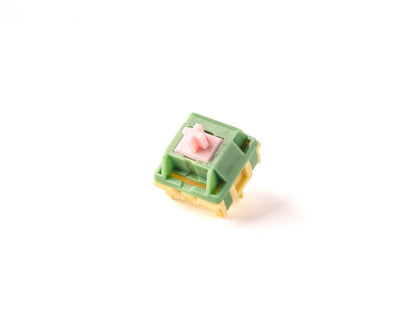

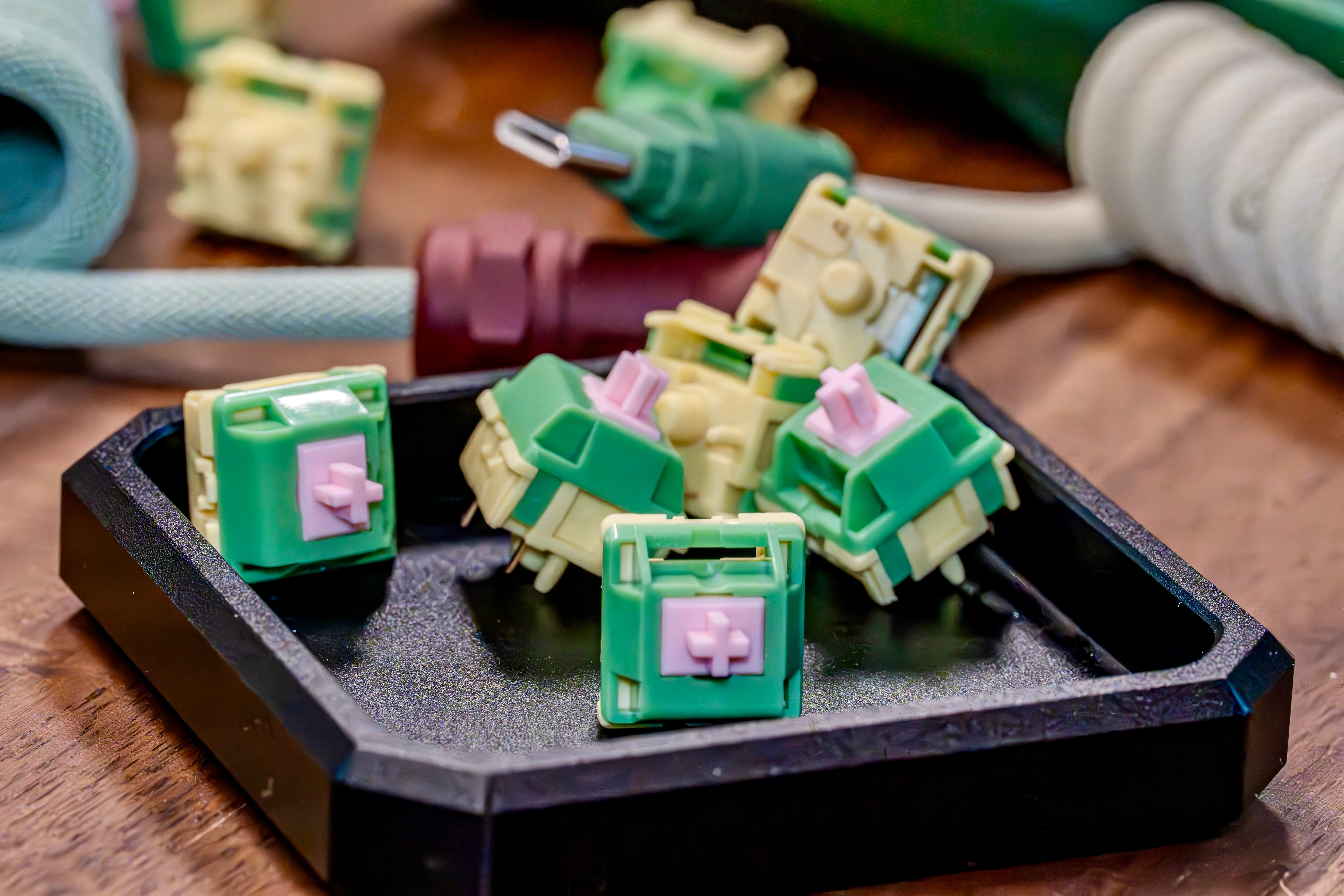

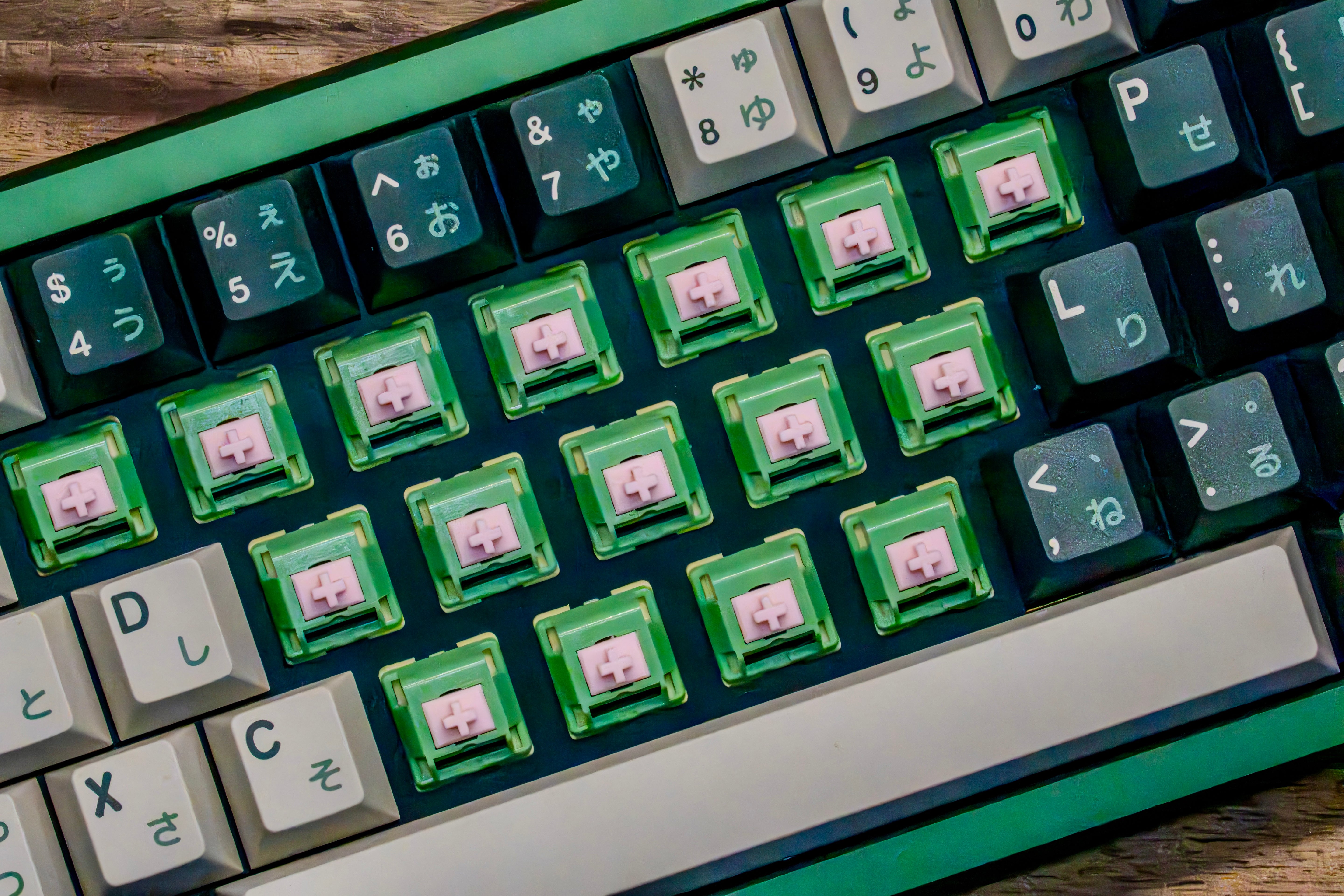

HMX Lotus Linear Switch Factory Lubed Edition

HMX Lotus Switches

Refined sound with a smoother edge.

HMX Lotus switches are linear switches designed by Udon, built around a POM stem and a full nylon housing to deliver a balanced, controlled sound profile. The updated top housing (PA12 + PA11 blend) helps keep the top-out subtle and focused, while the P2 nylon bottom housing maintains that signature HMX clacky bottom-out—just slightly more refined.

The result is a switch that keeps the character HMX is known for, but smooths out the edges for a cleaner overall experience.

What you’ll notice:

• Smooth linear travel with consistent feel
• Controlled top-out with a refined sound profile
• Light, clacky bottom-out without being overly sharp
• Balanced acoustics across the full keystroke

Specs:

• Type: Linear
• Designer: Udon
• Manufacturer: HMX
• Stem: POM
• Top housing: PA12 + PA11 blend
• Bottom housing: P2 nylon
• Operating force: 45±5g
• Bottom-out force: 50±5g
• Pre-travel: 2.0mm
• Total travel: 3.5mm
• Spring: 22mm single-stage KOS stainless steel extended spring
• Factory lubed (GPL105 + GPL205 mix; dry film on springs)
• 10 switches per pack
