GEON Frog Mini Leggera Acrylic G Type HE Kit

Total HE performance.

The Frog Mini Leggera takes GEON’s unmistakable Frog Mini design and strips it down into a lightweight, transparent acrylic build. KeebHaus is offering the Acrylic G Type exclusively as a complete Hall Effect kit, pairing the case with the GEON Venom 60HE RGB PCB for a custom 60% HE build that looks every bit as unique as it performs.

The acrylic Leggera is only produced in GEON’s G Type gummy O-ring configuration, giving the board a softer, isolated mounting style while letting the PCB and RGB show through the transparent housing. The 5° typing angle and low 17.6mm front height keep the board comfortable and familiar.

At the heart of the kit is the Venom 60HE RGB, GEON’s high-performance Hall Effect platform featuring adjustable actuation, Rapid Trigger, up to 8KHz polling, a 14KHz per-key scan rate, and web-based configuration.

For an even more complete build, add 70 Gateron Magnetic RAW HE switches and you'll have the case, PCB, plate, mounting hardware, and switches ready to go. Just add stabilizers and keycaps to finish it your way.

What you’ll notice:

• Transparent acrylic construction that lets the internals and RGB become part of the build
• G Type gummy O-ring mounting for a softer, isolated feel
• Full Hall Effect performance with adjustable actuation and Rapid Trigger
• Up to 8KHz polling and ultra-fast per-key scanning
• Compact 60% footprint with classic Frog styling
• A complete, purpose-built combination rather than piecing together compatible HE components
• Optional 70-pack of Gateron Magnetic RAW HE switches to get even closer to a finished build

Kit Includes:

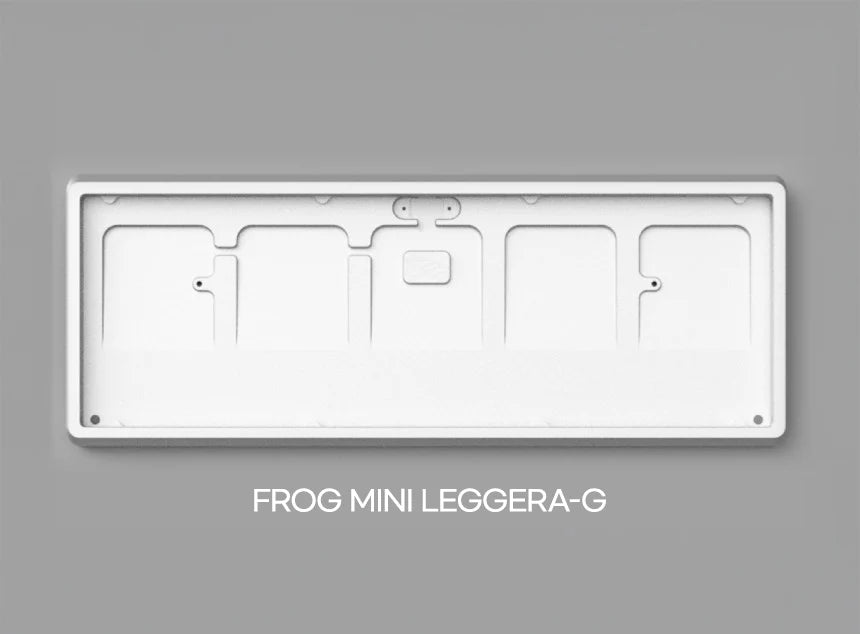

• GEON Frog Mini Leggera Acrylic G Type Case
• GEON Venom 60HE RGB 6.25U PCB
• GH60 compatible aluminum HE plate
• Venom 60HE foam set
• 40A gummy O-ring
• Fly daughterboard
• EZ Mate to JST cable
• Carrying bag
• Screws and assembly hardware
• Black silicone feet
• Compatible screwdriver

Optional:

• 70x Gateron Magnetic RAW HE Switches
• TX AP Clip-In Stabilizers

Specs:

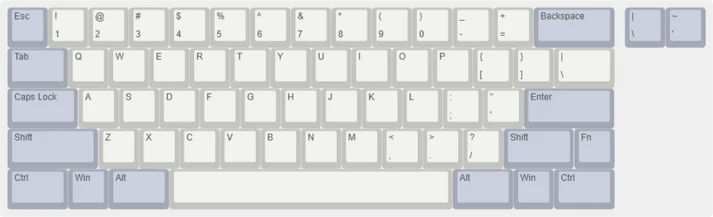

• Layout: 60%
• Case: Acrylic Frog Mini Leggera
• Mount: G Type Gummy O-ring
• O-ring: 40A
• Typing Angle: 5°
• Front Height: 17.6mm
• PCB: GEON Venom 60HE RGB
• PCB Type: Hall Effect / Magnetic
• PCB Thickness: 1.6mm FR4
• Plate: Aluminum, GH60 compatible
• Polling Rate: Up to 8KHz
• Scan Rate: Up to 14KHz per key
• Latency: ~0.16ms
• Firmware: Web-based configuration
• Architecture: RISC-V32
• Stabilizers: PCB mount
• Switch Compatibility: Magnetic HE switches


Additional Info:

• Frog Mini Leggera Information from Geon

• The Frog Mini Leggera Acrylic version includes a nameplate, and all serial numbers are the same, 001/100.

• Browser based programming: https://venom.how/

Just add stabilizers, switches and keycaps, or grab the kit with 70 Gateron Magnetic RAW HE switches and TX Ap Stabs you're most of the way to a complete Frog Mini HE build.
