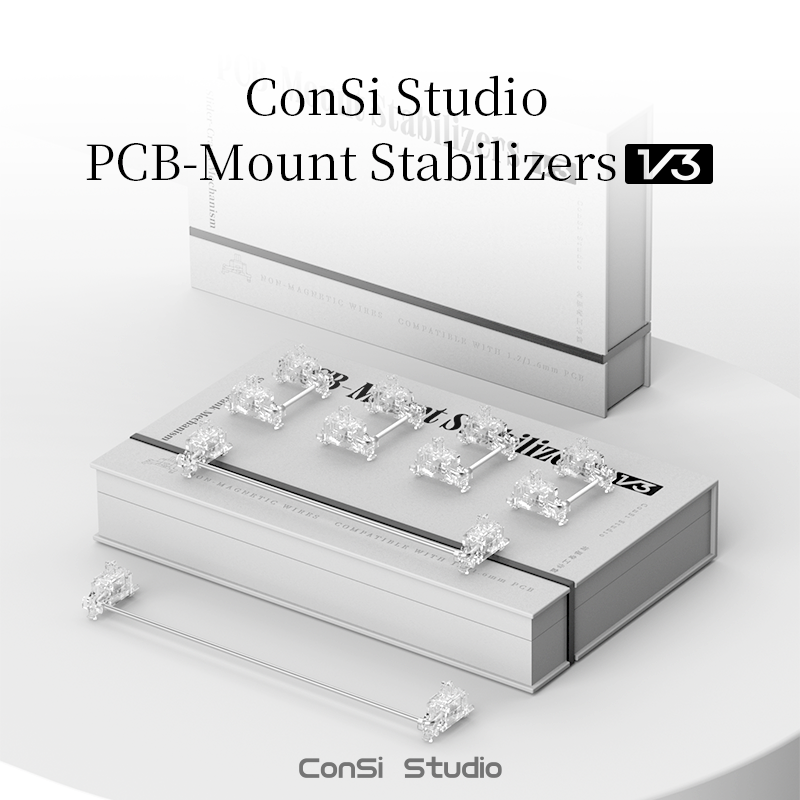

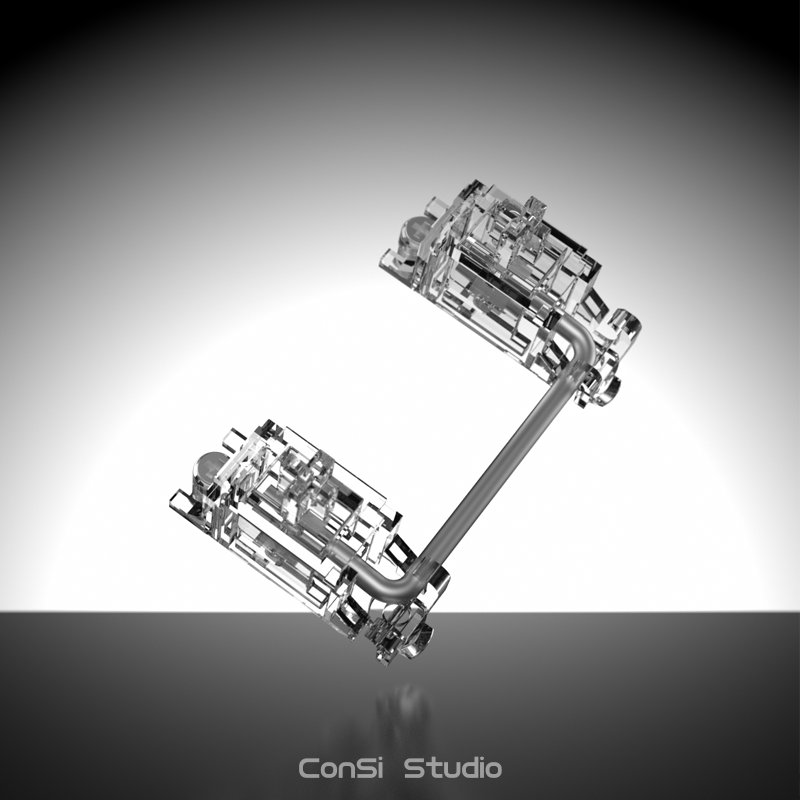

Consi Studio PCB Mount Stabilizers V3

A different approach to getting rid of stabilizer rattle.

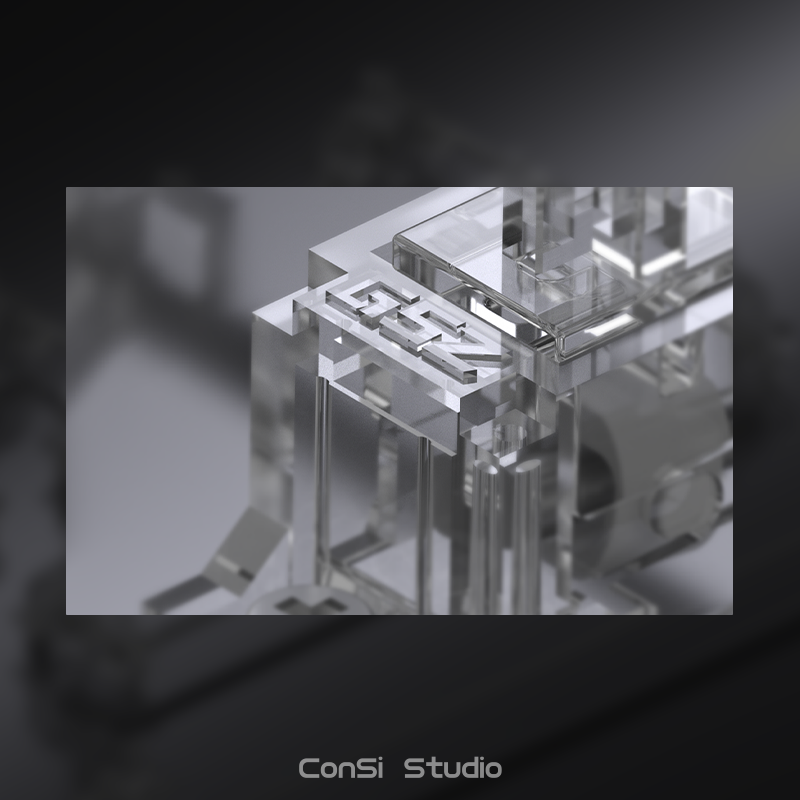

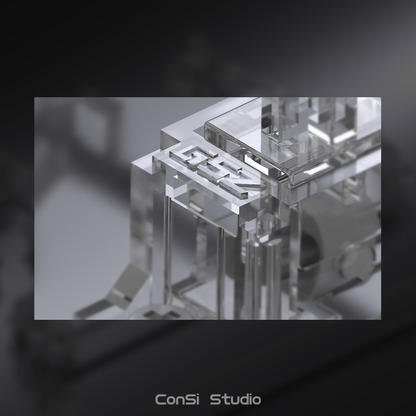

The Consi Studio V3 isn't just another variation of the traditional Cherry style stabilizer. It uses a novel slider crank mechanism that controls the stabilizer wire through the entirety of the keystroke, reducing the wire play that causes much of the rattle, wobble, and unwanted noise found in conventional designs.

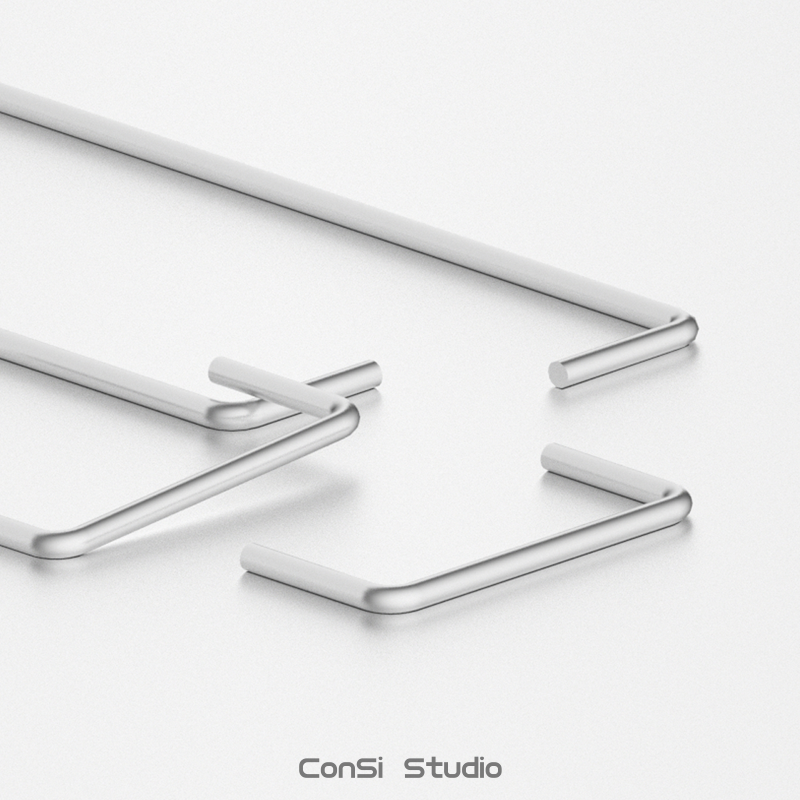

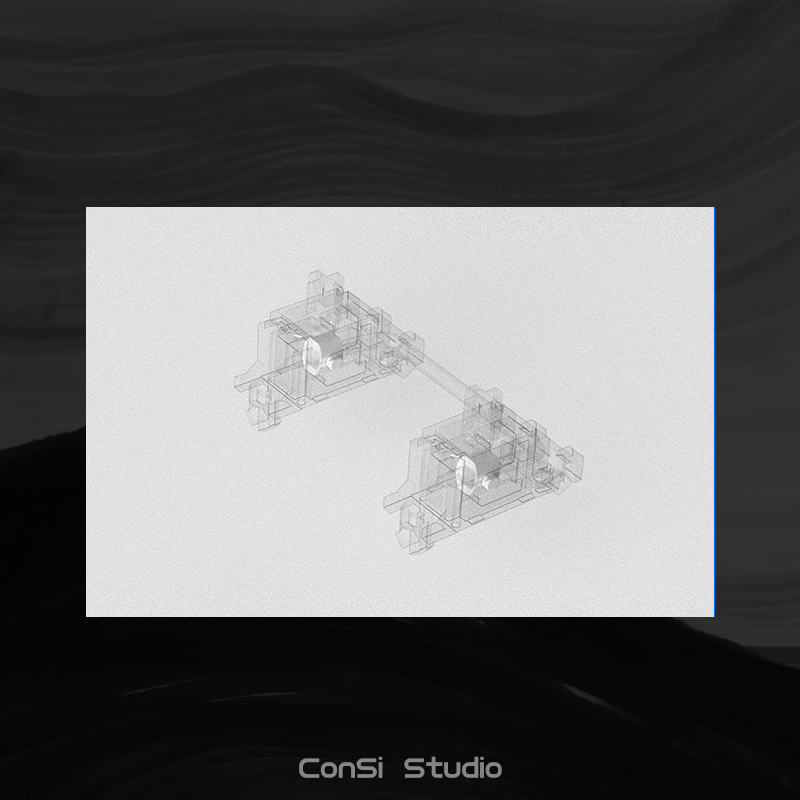

Instead of the wire moving loosely inside the stem, a central slider rotates around a fixed pivot while the wire moves through the mechanism. The result is a smooth, consistent keypress without relying on soft or elastic components that can make stabilized keys feel mushy.

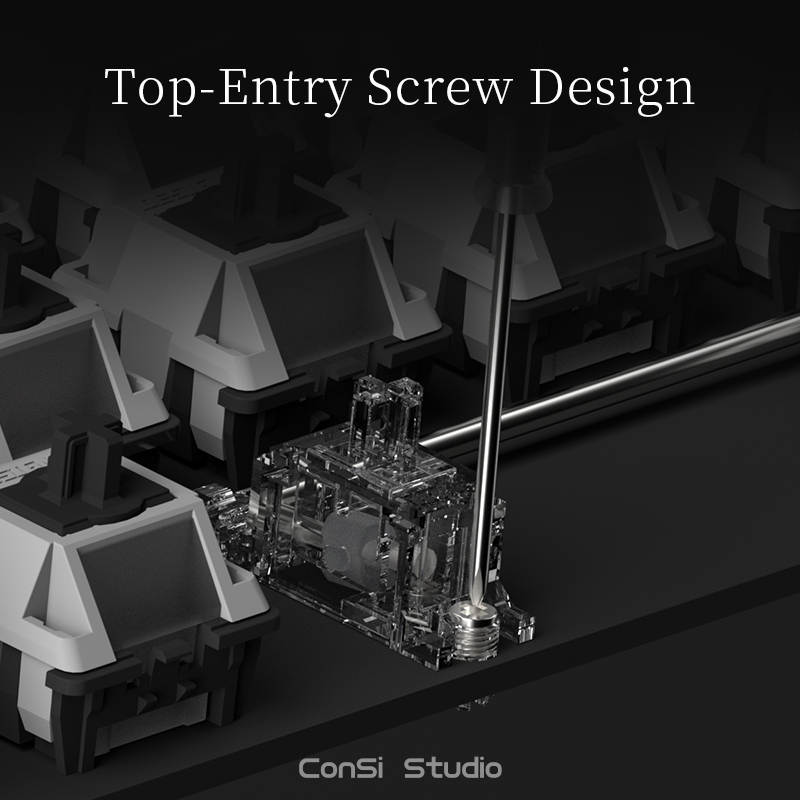

Installation gets an upgrade too. The V3 initially installs like a clip in stabilizer, then a screw accessed from the top of the PCB expands the retention clip and locks the housing securely into place. No flipping the PCB over to tighten traditional stab screws, and no metal hardware contacting the PCB.

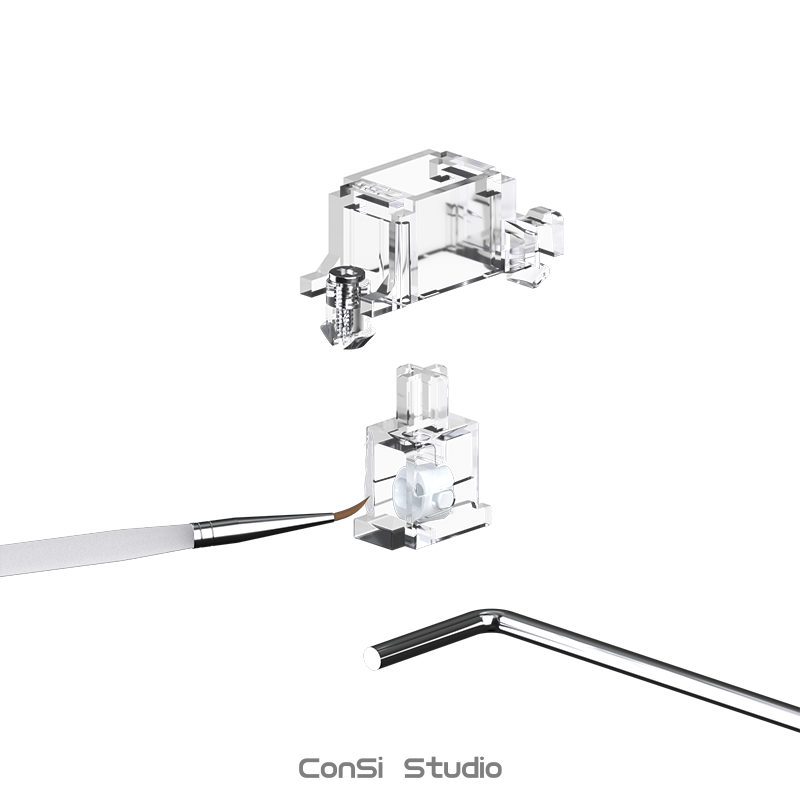

Best of all, they're factory tuned and pre lubed at the specific contact points the mechanism requires. Install them and use them. No mandatory stab tuning session before you can finish your build.

What you'll notice:

• Significantly reduced wire play, rattle, and wobble

• Smooth, consistent movement without a soft or mushy feel

• Secure PCB mounting without traditional bottom mounted screws

• Top accessible retention screws make installation and removal easier

• Factory tuned and pre lubed for use out of the box

• Support for both 6.25U and 7U spacebars in one kit

Specs:

• PCB mount stabilizers

• Slider crank stabilizer mechanism

• Clip in base with top entry screw expansion retention system

• Factory tuned and pre lubed

• Compatible with multiple PCB thicknesses and layouts

• Includes accessories for 1.2mm PCBs

• Includes stem spacers for switches with 3.6mm or less total travel

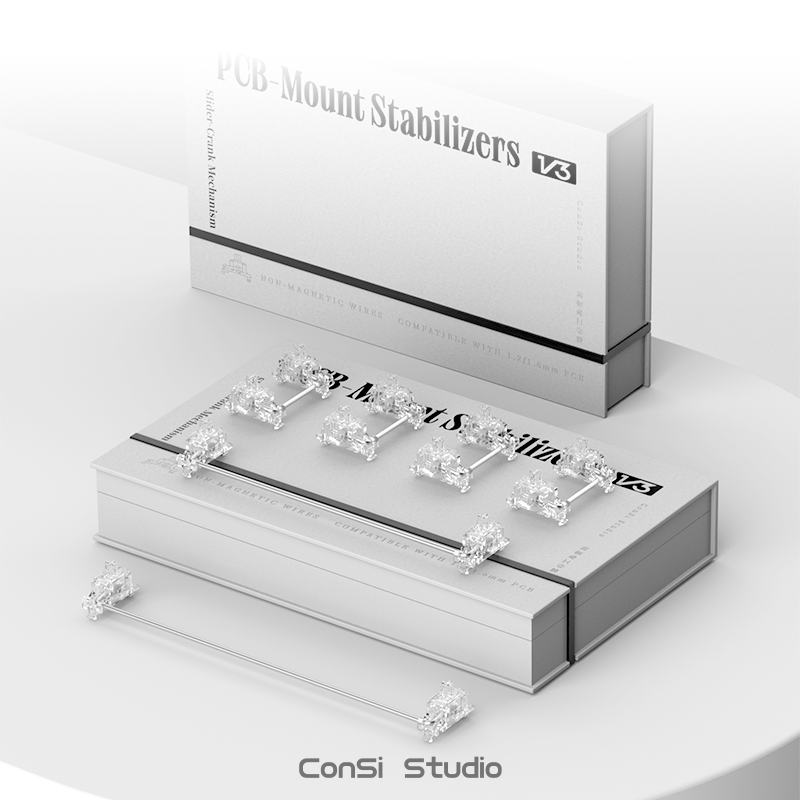

Set Includes:

• 4 × 2U stabilizers

• 1 × 6.25U stabilizer

• 1 × 7U stabilizer

• PTFE stabilizer pads

• 1.2mm PCB shims

• 1.2mm split layout PCB shims

• Stabilizer stem spacers

• 10 × screws

• Installation screwdriver

Please Note:

Both the 6.25U and 7U stabilizers are supplied as complete, assembled and pre lubed units rather than a single stabilizer with interchangeable spacebar wires.
