Commission Corner H87/H88 Solder TKL PCB

One PCB. Endless possibilities.

Designed by Mohit with Commission Corner, the H87/H88 Solder TKL PCB is a versatile foundation for custom TKL builds. Built around the widely adopted H87/H88 mounting standard, it offers broad compatibility with many popular TKL keyboards while providing the flexibility enthusiasts expect from a modern solder PCB.

Whether you're restoring a classic TKL, building a custom commission, or starting a new project from scratch, this PCB delivers reliable performance, extensive layout support, and a proven platform trusted throughout the keyboard community.

What you'll notice:

• Wide compatibility with H87/H88-compatible TKL keyboards
• Flexible layout options for personalized builds
• Reliable soldered switch installation
• Stable performance for both daily use and enthusiast projects
• A proven platform for custom and commission builds

Specs:

• Layout: Tenkeyless (TKL)
• Type: Solder PCB
• QMK/VIAL/VIA Compatible
• Standard: H87 / H88 compatible
• Black Core 1.6mm PCB
• 1.47mm Switch holes for MillMax Compatability.
• USB-C connectivity
• Spare on-board diodes for easy replacement
• Through-hole Caps lock and scroll lock LEDs
• Dedicated badge LEDs next to arrow cluster

• MX-style switch compatibility
• PCB mount stabilizer support
• Designed by Mohit

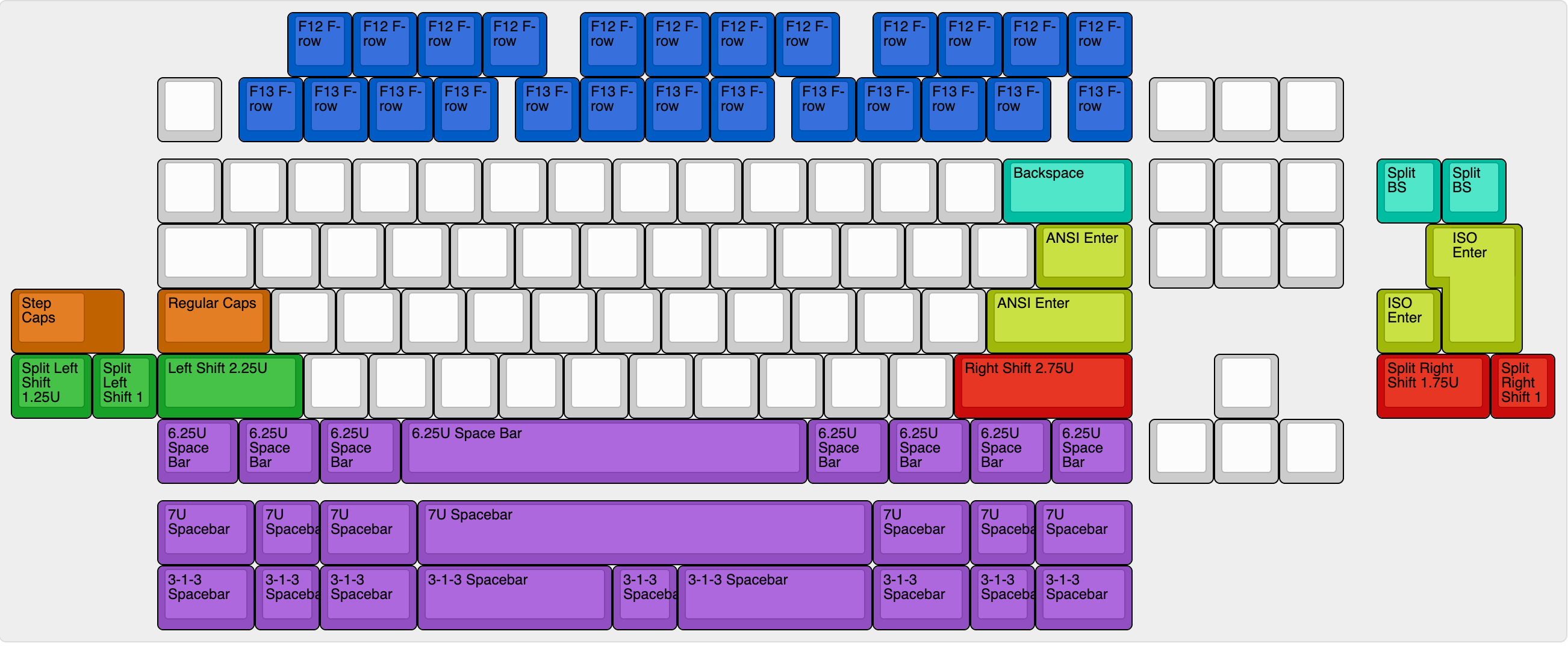

Layout Support

• F12 / F13 F-row
• Split backspace
• Step caps
• ANSI / ISO enter
• Split left shift
• Split right shift
• 6.25u spacebar
• 7u spacebar
• 3-1-3 spacebar

Connector Support

• Front-side USB Type-C
• Back-side USB Type-C
• Break-away USB-C or soldered cable option
• Standard TKL JST position
• JST near MCU (Alina)
• MX 1.25P centered (Ayleen TKL)

Please Note:

• This is a solder PCB and requires soldering for switch installation
• Keyboard case, plate, stabilizers, and switches are sold separately
• Compatibility may vary depending on keyboard design and mounting implementation
• Review your keyboard's compatibility before purchasing
